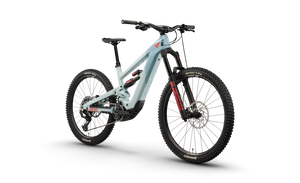

YT DECOY MX CORE 2 Bosch CX Gen5 800Wh Bolt Black Magic

YT DECOY CORE 2 — Performance Where It Counts

With RockShox’s latest ZEB Select+ fork and Vivid Select+ rear shock, the DECOY CORE 2 offers elite suspension at a mid-tier price. It’s powered by Bosch’s 100Nm motor and 800Wh battery for max trail time and effortless elevation gain. The SRAM Eagle Transmission keeps shifting crisp under load, while TRP’s DH-R EVO brakes provide controlled stopping on the steepest chutes. DT Swiss H1900 wheels and the proven YT Postman dropper make this a dependable, high-performance rig for aggressive all-mountain riders.

Decoy Core 2 — Specifications

• Frame:
  Ultra Modulus Carbon Frame V4L | 170 mm rear travel | 148 x 12 mm YT Thru Axle

• Fork:
  RockShox ZEB Select+ 29" | 180 mm travel | Charger 3.1 RC2 damper | 110 x 15 mm | 44 mm Offset

• Shock:
  RockShox Vivid Select+ | 230 x 65 mm | TouchDown RT with adjustable HBO | R54C26 tune

• Drive Unit:
  Bosch Performance Line CX | 85 Nm | 600 W peak power (unlock via app to 100 Nm / 750 W)

• Battery:
  Bosch PowerTube 800 | Integrated | 800 Wh | 36 V | 4A Charger

• Controller:
  Bosch Kiox 400C | USB-C | ANT+ | Bluetooth | Flow App | Navigation

• Headset:
  ACROS AZA-1370 / 1113-BL ZS56 ZS56 | Steel Bearings | Block Lock 150° (Size S only) | Custom High Cap | 2 x 5 mm Spacers

• Stem:
  Race Face Aeffect R 35 | 40 mm | +/-0° | Black

• Handlebar:
  YT Handlebar | 800 mm width | 8° Back | 6° Up | 40 mm Rise | Black

• Grips:
  ODI Elite Motion V2.1 Lock-On

• Crankset:
  SRAM 90 Eagle Transmission | 160 mm | Bosch BDU38 interface | Black

• Chainring:
  SRAM Eagle Transmission | 36T | Direct Mount | Bosch BDU38 compatible

• Chainguide:
  MRP SL Custom SL Slider | 34–36T compatible | Bosch BDU38

• Cassette:
  SRAM Eagle Transmission | 10–52T | XS-1270 | T-Type | 12-Speed

• Derailleur:
  SRAM Eagle 90 Transmission | T-Type | 12-Speed

• Shifter (Rear):
  SRAM Eagle 90 Transmission | MMX Mount | T-Type | 12-Speed

• Wheelset:
  DT Swiss H1900

  • Front: 29” | 30 mm internal width | 110 x 15 mm | 6-Bolt

  • Rear: 27.5” | 30 mm internal width | 148 x 12 mm | Ratchet LN | 6-Bolt | Steel Freehub (SS)

• Tires:

  • Front: Continental Kryptotal-Fr | 29” x 2.4 WT | Super Soft | Enduro

  • Rear: Continental Kryptotal-Re | 27.5” x 2.4 WT | Soft | Enduro

• Brakes:
  TRP DH-R EVO

  • Rotors: 220 mm (front) / 203 mm (rear) | 2.3 mm thickness | Performance Resin Pads

• Seatpost:
  YT Postman V2 Dropper Post with SRAM RM Dropper Remote

  • Drop:

    • 150 mm (S)

    • 170 mm (M)

    • 200 mm (L–XL)

    • 230 mm (XXL)

  • Diameter: 34.9 mm

  • Adjustable drop: 20 / 10 / 5 mm

• Saddle:
  SDG Bel Air 3.0 | 140 mm width | Lux-Alloy Rail | YT Custom Design

• Colour Options:
  PowderBlue
  BlackMagic

• Sizes Available:
  S / M / L / XL / XXL

• Weight:
  23.9 kg (Size L, tubeless setup, no bottle or pedals)

The ALL NEW DECOY MX Geometry

Measurements: millimeters (mm)
Flip Chip position: Regular (Head Angle is 63.5 in the LOW position)

Frame size, guideline for best fit
• S: 154 cm - 165 cm // 5'1" - 5'5"
• M: 163 cm - 175 cm // 5'3.5" - 5'9"
• L: 173 cm - 184 cm // 5'8" - 6'0.5"
• XL: 182 cm - 193 cm // 6'0" - 6'4"
• XXL: 193 cm - 202 cm // 6'3.3" - 6'7.5"

Bosch Smart System Specs

• Drive Unit: Bosch Performance CX (85 Nm, 600W peak, unlock to 100Nm / 750W)

• Battery: Bosch PowerTube 800 (800Wh)

• Display/Controller: Bosch Kiox 400C w/ USB-C, Flow app, Bluetooth, ANT+, navigation

Kinematics Snapshot

• Pedal Kickback (36T / 10-51T): Starts around 23° and drops to ~2° as travel increases

• Anti-Squat: Starts ~135% at sag, decreasing steadily with travel

• Anti-Rise: Consistent ~65–80%

• Leverage Ratio: Progressive, starting ~3.3 and descending to ~2.1 through 160 mm travel

In a nutshell: A step up in spec and all-around trail capability, the YT Decoy CORE 2 combines RockShox suspension, Bosch’s most advanced motor system, and SRAM’s 12-speed Transmission to tackle steep climbs and aggressive descents. A reliable mid-tier carbon eMTB for serious all-mountain riders.

Tech Highlights: Bosch Smart System | 800Wh Battery | RockShox ZEB Select+ Fork | RockShox Vivid Select+ Shock | SRAM Eagle Transmission | DT Swiss H1900 | TRP DH-R EVO | Carbon Enduro Frame

FAQs

• How does CORE 2 compare to CORE 1?
  The CORE 2 upgrades to RockShox suspension, stronger brakes, and SRAM’s Transmission drivetrain.

• Is this e-bike trail-legal in NZ?
  Yes, with a 32km/h assist limit out of the box, it’s fully compliant for trail use.

• Can I install a coil shock later?
  Absolutely, the frame accepts 230x65mm coil options.
